Quick Details

  • Condition: New
  • Brand Name: SNSC
  • Model Number: ZL30
  • Place of Origin: Shandong, China (Mainland)
  • Type: Front Loader
  • Moving Type: Wheel Loader
  • Dimension(Long * Breadth * High): 6890*2430*3070mm
  • Rated Load: 3000kg
  • Certification: ISO9001
  • Warranty: 15 months or 2500 working hours
  • After-sales Service Provided: Overseas third-party support available
  • Overall Weight: 9600kg
  • Bucket Capacity: 1.7-2.5m3
  • Maximum Dump Height: 3100mm
  • Maximum Dump Reach: 1006mm
  • Minimum Turning Radius: 5097mm
  • Rated Power: 92kw/2200rpm
  • Maximum Speed: 40km/h
  • Wheel Base: 2660mm
  • Wheel Tread: 1800mm
  • Product name: SNSC 3T Wheel Loader

Packaging & Delivery

Packaging Details 1 unit SNSC 3T Wheel Loader will need one 40HQ conatiner to shipment.
2 units SNSC 3T Wheel Loader will need one 40HQ + one 20GP contianers to shipment.
3 units SNSC 3T Wheel Loader will need three 40HQ containers to shipment.
Delivery Time Delivery within 30 days after receive the 30% deposit.

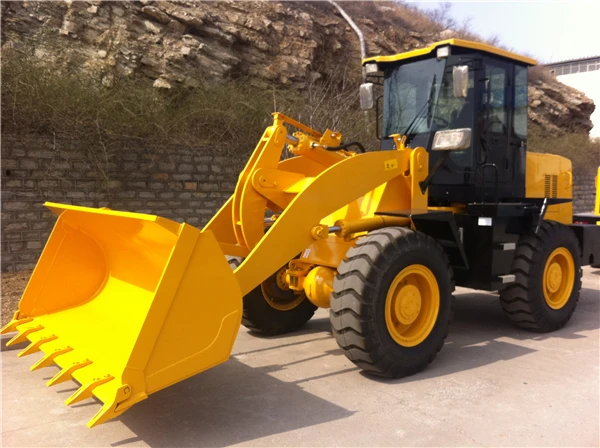

 SNSC 3T Wheel Loader

Other related SNSC wheel loader  you may have interests:

Product Description



  • Fully joystick controlmaking operating work more flexible.
  • CAT loader technology.
  • High power turbocharged engine.
  • Optional engine:  Cummins engine.
  • Many optional parts for choice: Quick hitch, Snow blade, etc.

SNSC 3 ton wheel loader   - More parameters



Performancerated load3000kg
overall weight9600kg
bucket capacity1.7-2.5m³
max. trative force97kn
max. brekout force127kn
max. grade ability30°
max. dump height3100mm
max. dump reach1006mm
overall dimension(L*W*H)6890*2430*3070
min. turning radius5097mm

Transmission

system

torque converterYJ315-X
gearbox modepower shift normlly engaged straight gear
gears4forward 2backward
max. speed40km/h
Drive axlesmain reducing spiralbevel gear grade ireduction
decelerating modeplanetary reduction grade1
wheel base2660mm
wheel tread1800mm
min. ground clearance400mm
Enginemodel

YC6B 125-T20/

WP6G 125E22/

YUCHAI YC6B125-120

typeinline water cooling four stroke
no. of cylinder-bore/stroke6-108*125mm
read power92kw
max. torque500n/m
min. fuel-consume ratio≤210kw/h

Hydraulic

system

system working pressure16.5mpa
boom lifting time4.83s
total time9.15s±0.5s
fuel tank capacity156L
function of leveling automaticallyyes
Brake systemparking brakeair over hydraulic disc brake on 4
parking brakemanual disk brake
Tyretype specification17.5-25
font tyre pressure0.4mpa
rear tyre pressure0.35mpa





Most SNSC 3T Wheel Loader  parts are self- produced , ensuring higher efficiency of loader parts working together, and greatly reduce production cost, moving more profits to customers.



All SNSC 3T Wheel Loader adopts best USA hydraulic piplines, highest quality and most stableoperational performance.





Packaging & Shipping



SNSC 3T Wheel Loader will be Nude package, and Container shipment or Ro-Ro shipment

  • 1 unit   SNSC 3T Wheel Loader will need one 40HQ conatiner to shipment.
  • 2 units  SNSC 3T Wheel Loader will need one 40HQ + one 20GP contianers to shipment.
  • 3 units SNSC 3T Wheel Loader will need three 40HQ containers to shipment.
Our Services



We are dedicated in first class service and 7x 24 hours response time - Fighting for your safety use by our expertise
We adhere to the spirit of “safety” “high-efficiency” “expertise” and “responsibility”, aiming to help you solve all loader problems in the using. To achieve this, we offer you all kinds of high-efficiency services:calling service, training service, maintenance service, agent service. In a world, we are responsible to you and our loader all the time.




AFTER-SALE SERVICE and MAITENANCE
We have a professional after-sale service team. We can guarantee you the 24-hour calling rapid-reaction mechanism. Please contact us freely, if any questions.


Our loader are all well-designed and strictly tested. If any loader maintenance problem you can not handle, we can also offer training and maintenance services in our factory field or at your site.Your requirements will be handled promptly and appropriately.

Our loader has officially build up the cooperation relationship with 22 partners and provided the best and fast service for the customers all over the world. Besides,We have offices in Algeria, Brazil, Britain and South Africa.



WARRANTY TIME
The loader warranty period is 15 months or 2500 working hours begins from the loader arrival date of oversea port, depends on which come first.

Company Information



SNSC Shine Group initiate the second phase of our development strategy. Our company regardes  "reasonable price, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benifits. We welcome potential buyers to contact us.
