Quick Details

  • Condition: New
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: SNSC
  • Model Number: FB35
  • Type: Powered Pallet Truck
  • Power Souce: AC Motor
  • Rated Loading Capacity: 3500kg
  • Max. Lifting Height: 3000mm
  • Min. Lifting Height: 145mm
  • Fork Length: 1070mm
  • Fork Width: 125mm
  • Overall Dimensions: 2630*1225*2095
  • Certification: CE,GOST; ISO9001
  • After-sales Service Provided: Overseas third-party support available
  • Product Name: SNSC 2pcs 3.5tons electric forklift to uzbekistan
  • Mast: 2 Stage/3 Stage
  • lifting height: 3-7m
  • Tire: Pneumatic Standard
  • Power(Battery): 80/700V/Ah
  • Controller: USA CURTIS
  • Color: Customer Demanded
  • Options: Hoppeck battery, Led Light, lux seat ect
  • OEM: Yes
  • Key words: electric forklift

Packaging & Delivery

Packaging Details: 3.5tons electric forklift for sale can use Container;
one 20GP container take 2sets 3.5tons electric forklift.
one 40GP container take 4sets 3.5tons electric forklift.
Delivery Detail: electric forklift Shipped in 7-20 days

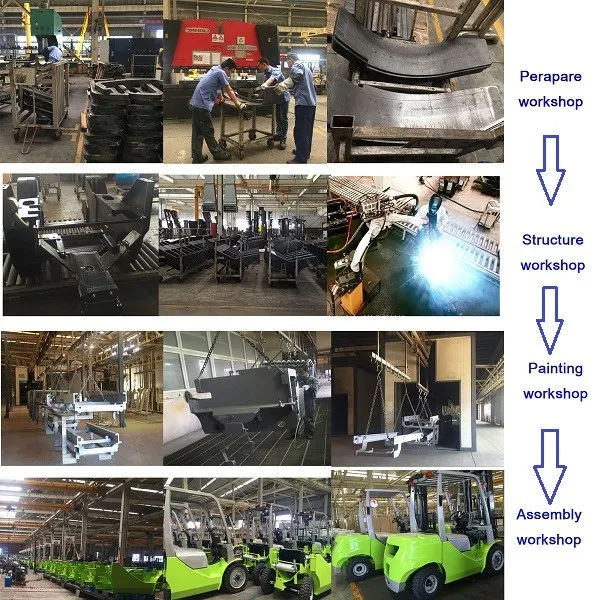

Our Company

We are first-classforklift manufacture in China and top 20 forklift manufacture in the world, 130,000 square meters production area, over 500 employees, 30,000 units production capacity per year,5000 sets export volume.

Product Description

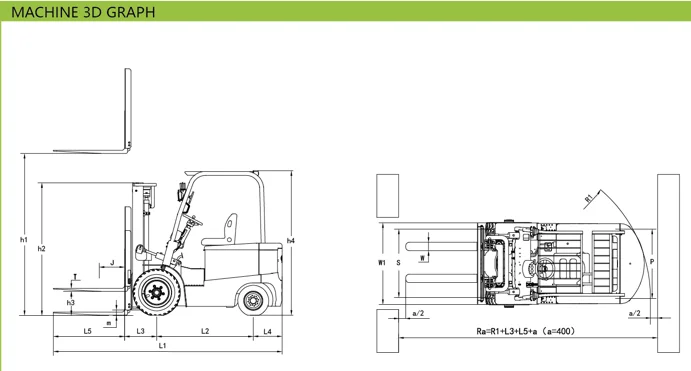

 Specifications  of  3.5tons electric forklift









Features
Power type

-
Battary
Load Center
J
mm
500
Rated loader
kg
3500kg
Lifting Height
h1
mm
3000
Free Lifting Height
h3
mm
145
Fork Size (L*W*T)

mm
1070×125×50
Mast Tilt Radius( Front/Rear)

-
6/12
Minimum turning Radius
R1
mm
2385
Minimum Stacking Right Angle Channel Width

mm
4060
Minimum Right Angle Channel Width

mm
2290
Minimum Ground Clearance
h4
mm
120
Overhead Guard Height

mm
2300
Front Overhang
L3
mm
485


Performance
Max. Travelling Speed Full load









 km/h
12.5
Max. Lifting Speed Full load

 mm/s
280
Max. Climbing Ability

 %
12/15


Dimensions
Overall Length Without Fork
L1
mm
2630
Overall Width
W1
mm
1225
Max. Fork Lifting height (With Load Backrest)

 mm

4265
Mast Lowered Height
h2
 mm
 2095


Chassis
Tyre( Front/Rear )



28*9-15-12PR
18*7-8-14PR
Wheel Base

mm
1720
Wheel Tread Front/Rear

mm
1000/980
Curb Weight Without Load

 Kg
5300



       Power
Battery Voltage/Capacity

 V/Ah
80/580
Driving motor


10/12
Lifting motor

12/14
Controller

CE
CURITS
Control mode


DC /AC
Work Pressure

MPa
17.5

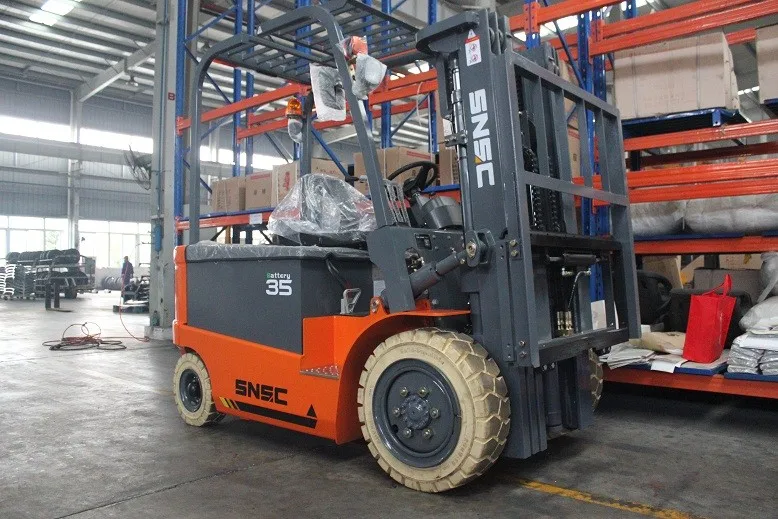

Detailed Image

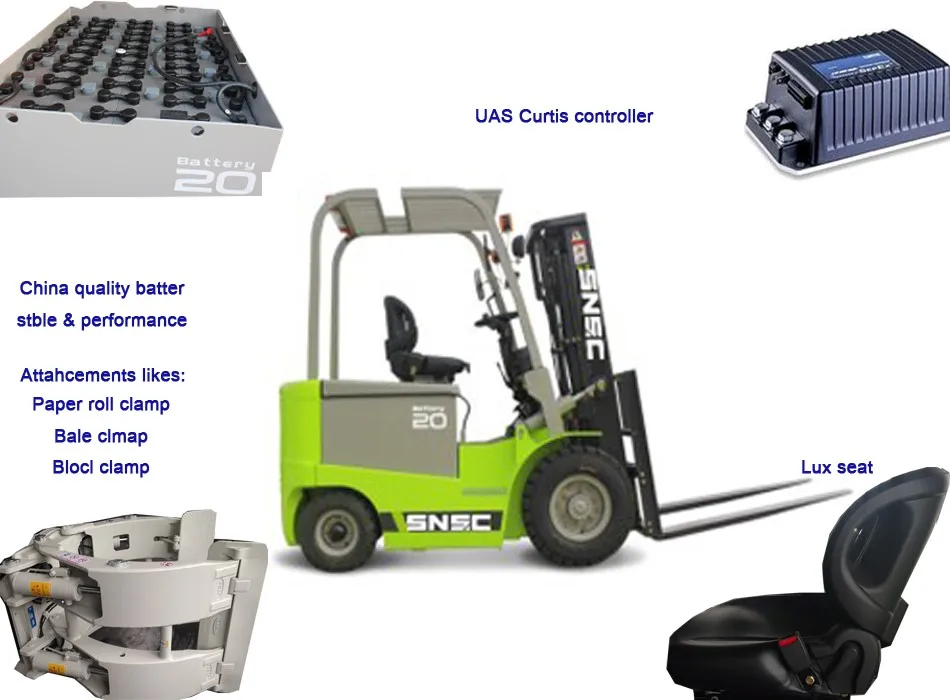

Electric Forklift  advantages:

Our Electric forklift 3.5tons is new condition,
with very good quality and best configurations:
 • We use Chinese best quality and first class brand battery, Optional HOPPECKE battery for your choice.


• Full electric AC motor brushless, maintenance-free, and low cost.


• Charger is standard configuration for all our battery lifter truck forklift electrical.



• All our battery lifter truck & electrical forklifts controller brand is USA CURTIS.


• We can do all kinds of lifting height and masts for our forklift electrical, according to customers’ requirements, eg: duplex 3m mast, triplex 4.5m mast, triplex 6m mast.


• We can offer all kinds of attachments,

eg: roll paper clamp /cabin / different fork length / solid tire/ side shifter / fork Sleeves and so on.

Our Products
We have all kinds of forklifts that can meet your needs.

I. Diesel forklift truck range from 1 to 10ton;(FD30/5/40/45/50/60/70/80)

II.Battery forklift truck range from 1.5 to 3.5ton;(FB15/20/25/30/35)
III.LPG and gasoline forklift truck range from 2 to 3.5 ton;
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)
V.4 *4 all wheel drive off-road forklift truck range from 2.5 to 10ton.

we can customized the forklifts according your needs.

I. Engine: chinese engine with xinchai,xichai. japense engine with isuzu/yanmar/ Kubota/ Perkins/ Mitsubishi engine

II.Fork:cab/ paper roll clamp

III:Fork length;22m/1.4m/1.5m

IV:tyre:double/solid tire

V:Mast lifingt weight:3m/4.5m/6m /7m and so on.

VIl:Mast:3m duplex standard mast/ 3m duplex full free mast/ 3m triplex full free mast

VIII: Color: orange/green/yellow/blue

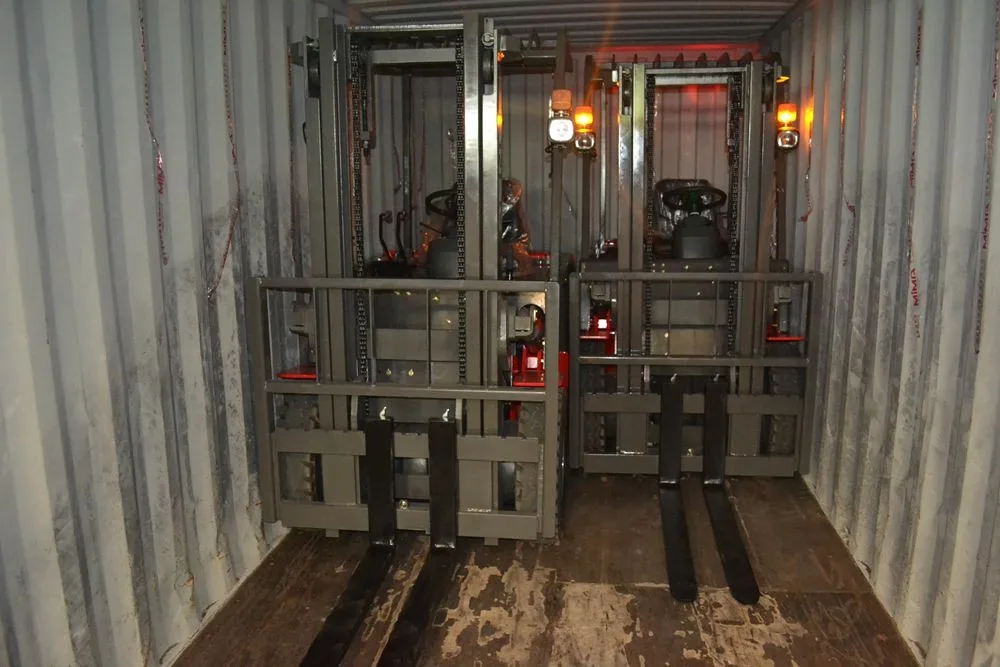

Packing & Delivery


SNSC  3.5ton electric forklift will use container shipment or Ro-Ro shipment to deliver;

one 20GP container can take 2pcs 3.5tons electric forklift.
one 40GP container can take 4pcs 3.5tons electric forklift.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

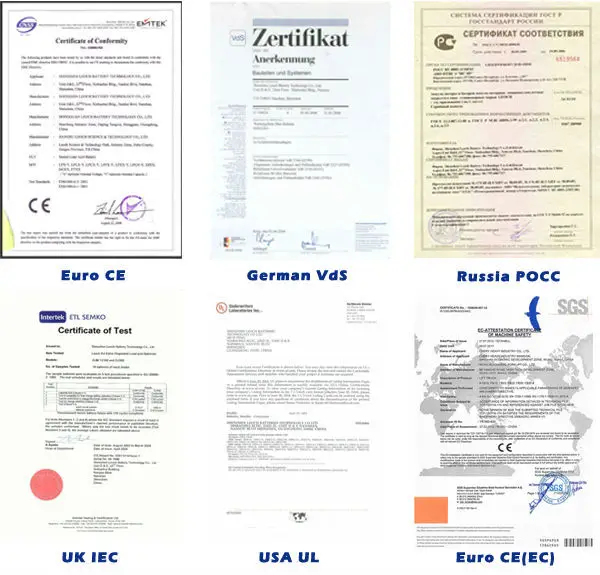

Certification
FAQ

1.What's the Certificate do you have?
Our Fork lift truck has passed all kinds of international certificates, eg:Russian Gost certificates or European CE(EC) certificates, especially, our CE certificates are made in Turkey. Quality is guaranteed and performance stable.

2. Can you customize and design as the clients' requirement?
Un will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.

3. How long is the warranty of your products?
All of products are with 12months / 2200 working hours subject to the first.

4. Can you produce the products labeled with the client's brand?
Yes, we do! With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
- You can ask Cecile directly.

6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.
