Quick Details

  • Condition: New
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: SNSC
  • Model Number: FD30 diesel forklift
  • Type: Powered Pallet Truck
  • Power Souce: Diesel Engine
  • Rated Loading Capacity: 3000kg
  • Max. Lifting Height: 3000mm
  • Min. Lifting Height: 145mm
  • Fork Length: 1070mm
  • Fork Width: 125mm
  • Overall Dimensions: 2825*1230*2170mm
  • Certification: CE, EPA, GHOST, Euro 3 Emission Standard
  • After-sales Service Provided: Overseas third-party support available

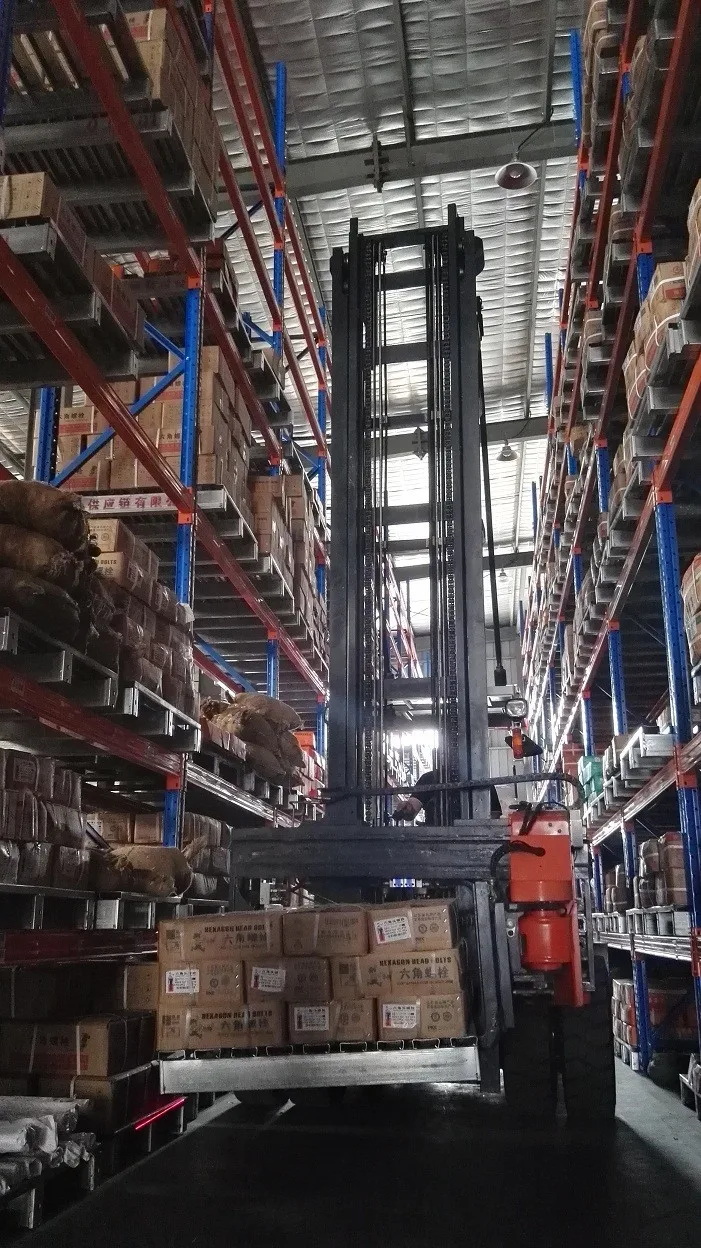

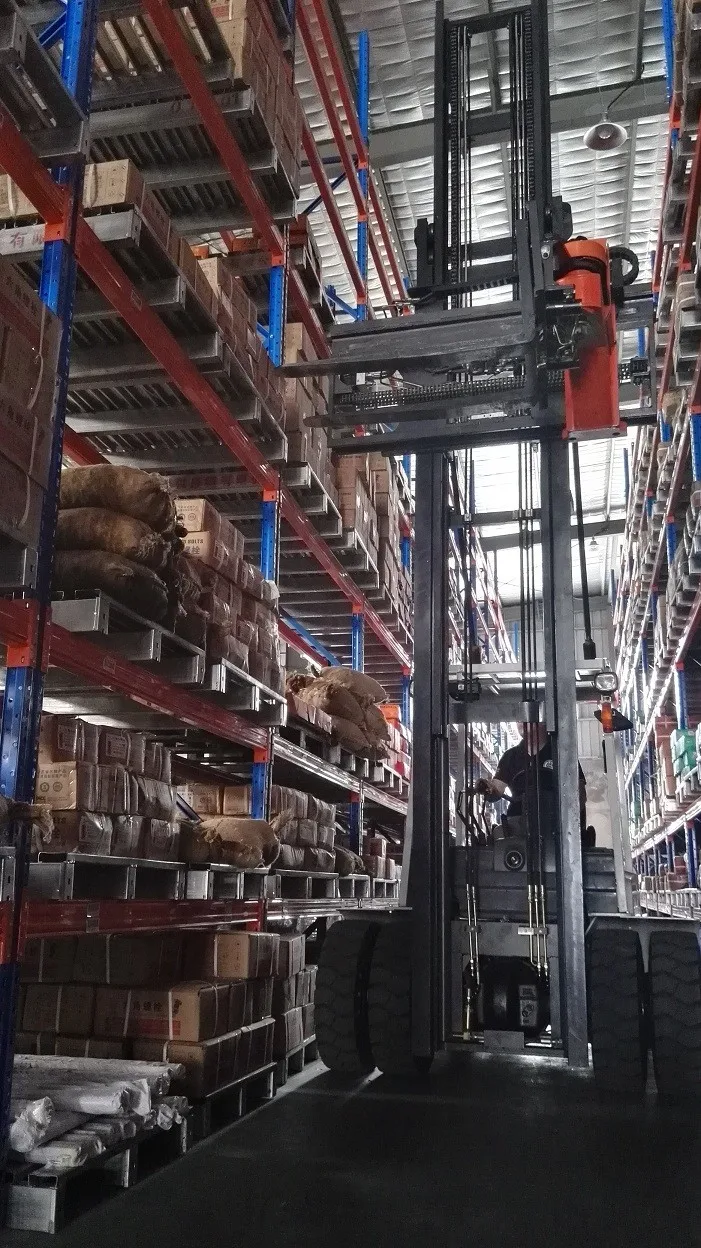

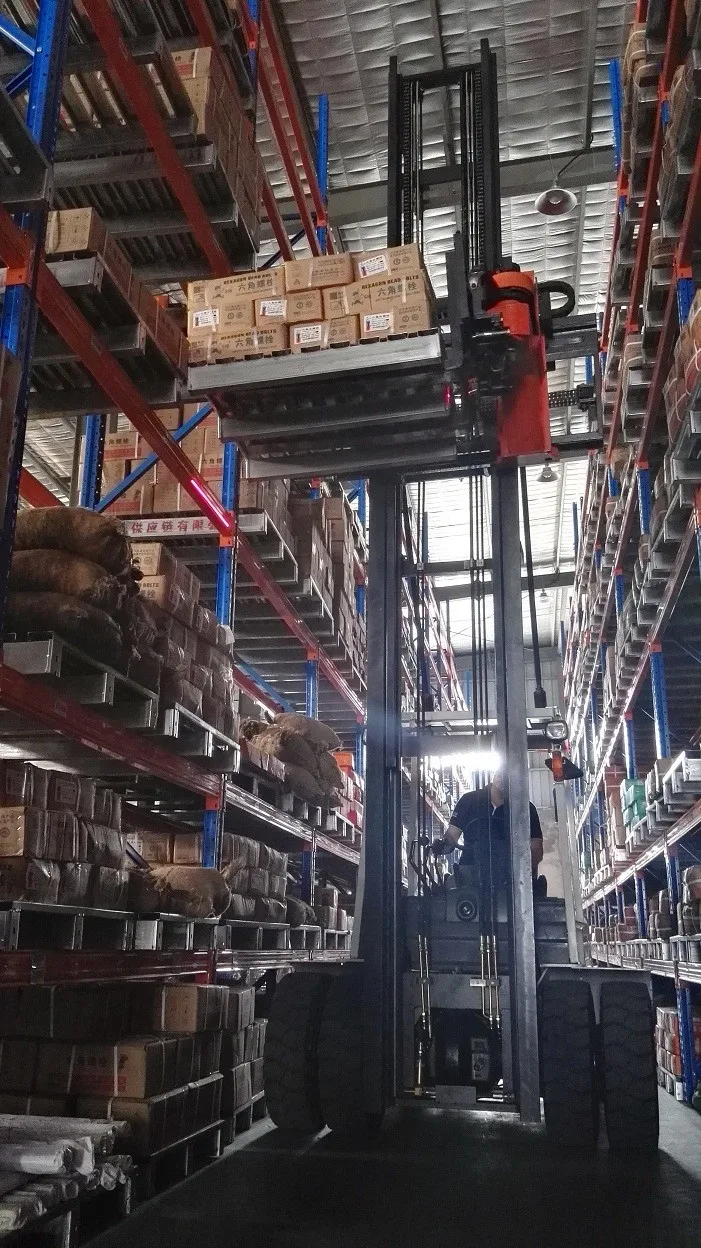

  • product name: SNSC 3tons Tri-Lateral Forklift
  • Redirector: USA Eaton Redirector
  • Mast: 2-stage/full free lift
  • Transmission type: Automatic Japan shimadzu tranmission
  • Tire: Pneumatic Standard
  • Engine option: Imported ISUZU brand/ Yanmar / Kubota/ Perkins/ Mitsubishi engine
  • Other option: solid tire/fork extension/high exhaust ect
  • Attachement: side shifter / positioner /clamp ect
  • Color: Customer Demanded
  • OEM: Yes

Packaging & Delivery

Packaging Details SNSC Tri-lateral diesel forklift 3tons for sale can use Container Package.
one 40GP container take 4 sets Tri-lateral diesel forklift.
Delivery Time in 7-20 days after payment
Our Company
We are top 3 in Chinese forklift truckmanufactures and top 20 in the world,over 500 employees,30,000 units forklift truck production capacity per year,5000 sets export volume

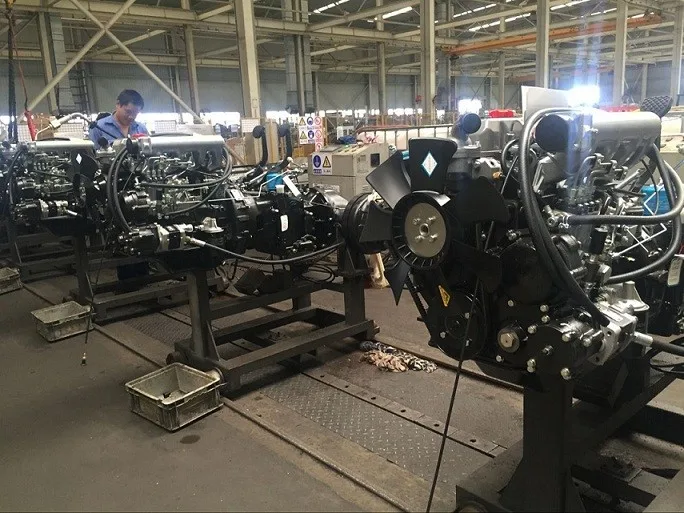

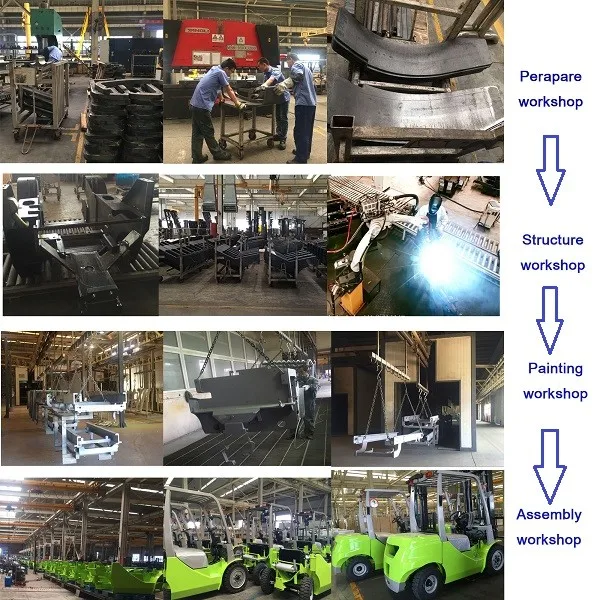

our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
Our Products
We have all kinds of fork lifter that can meet your needs.

I. Diesel forklift range from 1 to 16tons;(FD30,35,40,45,50,60,70,80,100,160)
II. Battery forklift range from 1.5 to 3.5tons;(FB15, 20, 25, 30, 35)
III.LPG and gasoline forklift range from 1.5 to 3.5 tons;(FL15,18,20,25,30,35)
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)
V.4 *4 all wheel drive off-road fork lifter range from 2.5 to 10ton.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Quality control

Our products are all well-designed and strictly tested. Like angle/wheel hug/brake line/climbing/speed/loading/lifting/turn radis ect. We can make sure every forklift quatlity before delivery to our customer.So our fork lifts for sale products have won highly praised from oversea clients.

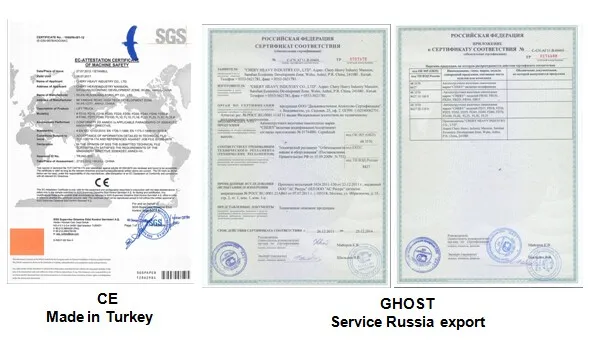

Certifications

Our SNSC forklift forklift  has  kinds of international certificates, eg:Russian Gost certificates or European CE(EC) certificates, especially, our CE certificates are made in Turkey. Quality is guaranteed and performance stable.

Product Description

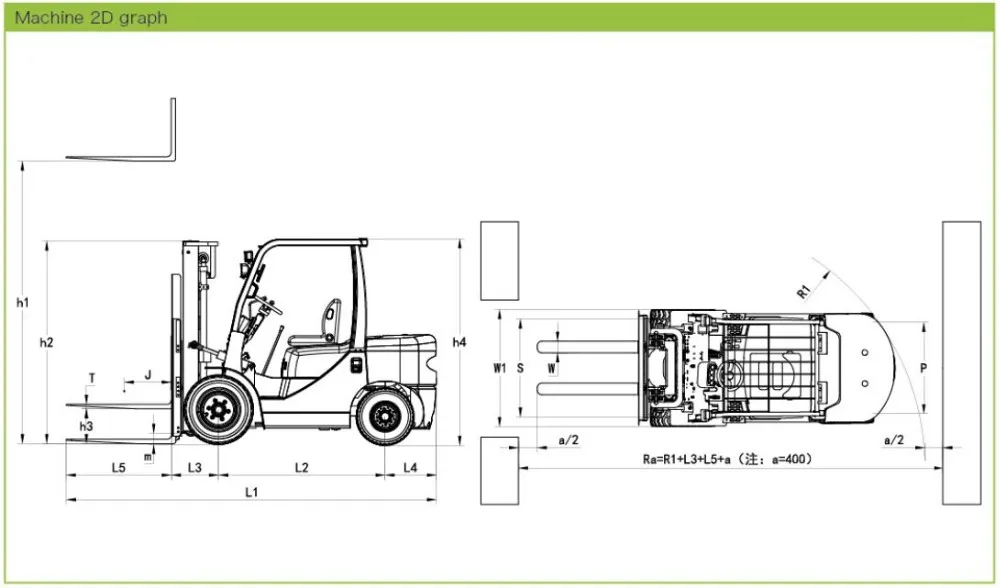

  Specifications  of   diesel  forklift 3 tons









Features
Power type

-
 Diesel
Rated Load

kg
3000
Load Center
J
mm
500
Lifting Height
h1
mm
3000
Free Lifting Height
h3
mm
145
Fork Size (L*W*T)

mm
1070×125×45
Mast Tilt Radius( Front/Rear)

-
6/12
Minimum turning Radius
R1
mm
2600
Minimum Stacking Right Angle Channel Width

mm
4280
Minimum Right Angle Channel Width

mm
2120
Minimum Ground Clearance
h4
mm
120
Overhead Guard Height

mm
2170
Front Overhang
L3
mm
475


Performance
Max. Travelling Speed Full load









 km/h
20
Max. Lifting Speed Full load

 mm/s
470
Max. Traction Full load

KW
18
Max. Climbing Ability

 %
20


Dimensions
Overall Length Without Fork
L1
mm
2695
Overall Width
W1
mm
1230
Max. Fork Lifting height (With Load Backrest)

 mm

4265

Mast Lowered Height
h2
 mm
 2055


Chassis
Tyre( Front/Rear )



 28x9-15-12PR
6.50-10-10PR
Wheel Base

mm
1700
Wheel Tread Front/Rear

mm
1000/970
Curb Weight Without Load

 Kg
 4350






       Power
Battery Voltage/Capacity

 V/Ah
12/90
Engine Model


 XINCHAI/ISUZU
Rated Power

kw/r.p.m
34.5/2500
Rated Torgue

 Nm/r.p.m
139/1800
Bore*Stroke

mm
 95×105
Cylinder Amount


4
Displacement

L
2.36
Fuel Tank Volume

L
70
 Gears front/back


 2/2Manual shift, 1/1Power shift
Work Pressure

MPa
17.5

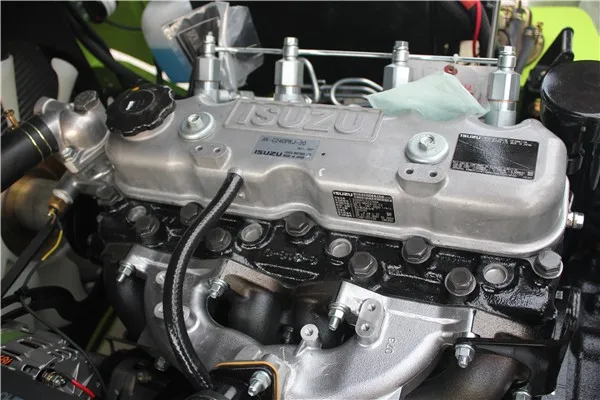

Japan ISUZU engine for  diesel forklift 3ton


Diesel forklift  3ton adapt china xinchai C490 Engine ,  optional Japan engine, eg: Imported ISUZU brand/ Yanmar / Kubota/ Perkins/ Mitsubishi engine for your choosing.


Automatic transmission for 3tons diesel forklift


Diesel fork lift 3ton use japan automatic transmission,make your work very comfortable and efficient.

Hydraulic system is energy efficient which lower fuel consumption.

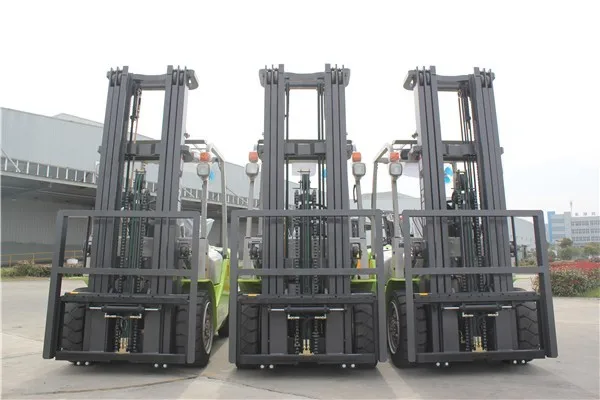

Different mast &lifting height for  3tons diesel forklift
Our forklift used standard 3000mm lifting height duplex mast.

But we can also do different lifting height mast according customers' different working condition, eg: 3m duplex standard mast/ 4.5m duplex full free mast/ 6m triplex full free mast and others. Our mast lifting height capacity from 3m to 7m for customers choosing.

Diesel forklift VIP solution

we can  do different lifting height mast from 3-7m  according customers' different working condition.

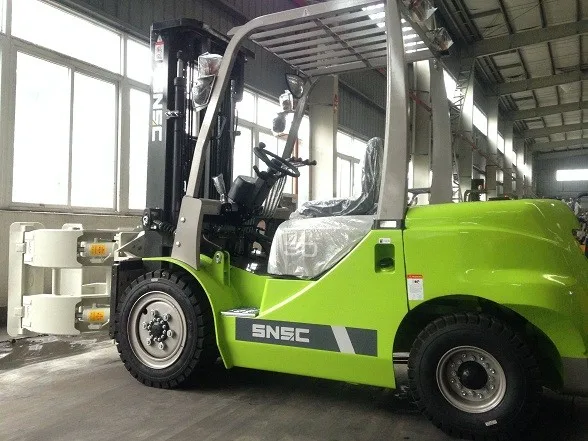

we can offer all kinds attahement according customers' working condition,eg: solid tire/ sideshifter/ paper roll clamp/carton clamp/block clamp/blae clamp/positioner ect.

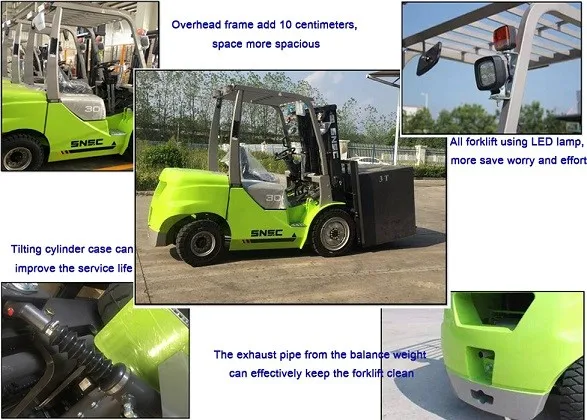

New design

Overhead frame add 10 centimeters, space more spacious;

All forklift lamps using LED lamp, the customer more save worry and effort;

The exhaust pipe from the balance weight can keep the forklift clean;

Tilting cylinder case can effectively improve the service life of oil cylinder.

FAQ

1.What's the Certificate do you have?
Our Fork lifter has passed all kinds of international certificates, eg:Russian Gost certificates or European CE(EC) certificates, especially, certificates are made in Turkey. Quality is guaranteed and performance stable.

2. Can you customize and design as the clients' requirement?
Un will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.

3. How long is the warranty of your products?
All of products are with 15 months / 2500 working hours begins from the forklift arrival date of oversea subject to the first.

4. Can you produce the products labeled with the client's brand?
Yes, we do! With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
 TT / LC or according customer's condition.

6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.
