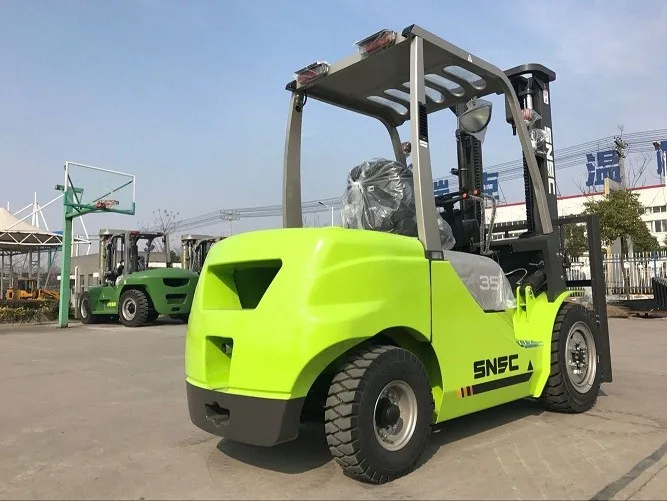

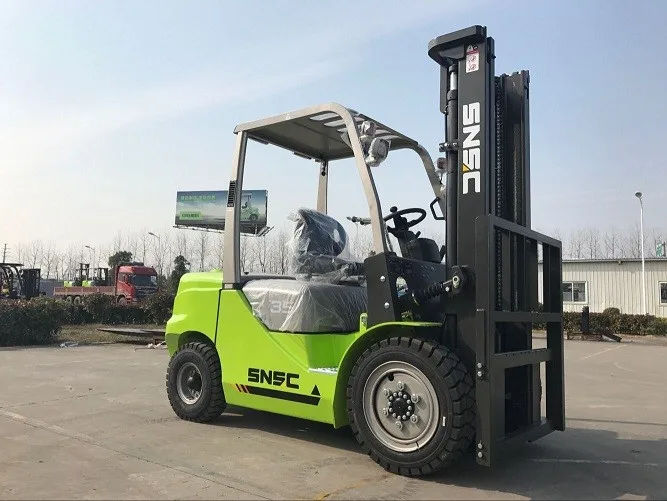

SNSC 3.5T diesel Forklift to El Salvador

FOB Reference Price:Get Latest Price
US $8,300-9,700 / Set | 1 Set/Sets forklift (Min. Order)
Supply Ability:
1000 Set/Sets per Month forklift
Port:
Shanghai/Qingdao/Tianjin/Wuhu
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
/SNSC
Model Number:
FD35 diesel forklift
Type:
Powered Pallet Truck
Power Souce:
Diesel Engine
Rated Loading Capacity:
3500kg
Max. Lifting Height:
3000mm
Min. Lifting Height:
145mm
Fork Length:
1070mm
Fork Width:
125mm
Overall Dimensions:
2825*1230*2090
Certification:
CE, EPA, GHOST, Euro 3 Emission Standard
After-sales Service Provided:
Overseas third-party support available
Product Name:
SNSC 3.5T diesel Forklift to El Salvador
Engine option:
isuzu/mitisbushi/yanmar ect
Mast:
2-stage/full free lift
Lifting height:
3-7m
Attachemts:
clamp/side shifter ect
Tire:
Pneumatic Standard
Option:
Led lights, solid tire, double filter ect
Color:
Customer Demanded
OEM:
Yes
Key words:
forklift
Packaging & Delivery
Packaging Details
3.5tons forklift can use Container Package for shippment.
one 20GP container take 2set 3.5tons forklift for sale.
one 40GP container take 4set 3.5tons forklift for sale.
Delivery Time
Shipped in 25 days after payment

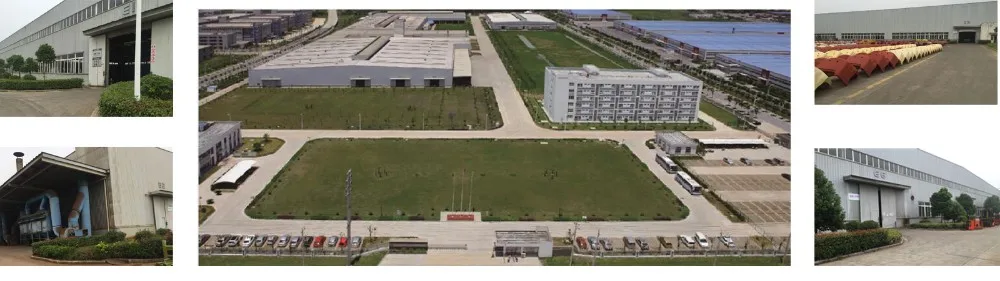

Our Company

We SNSC are top 3 in Chinese fork lifter truck manufactures and top 20 in the world,over 500 employees,30,000 units forklift truck production capacity per year,5000 sets export volume
our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.

Product Description
Technical Pamameters of 3.5tons forklift for sale









Features
Power type

-
 Diesel
Rated Load

kg
3500
Load Center
J
mm
500
Lifting Height
h1
mm
3000
Free Lifting Height
h3
mm
145
Fork Size (L*W*T)

mm
1070×125×50
Mast Tilt Radius( Front/Rear)

-
6/12
Minimum turning Radius
R1
mm
2430
Minimum Stacking Right Angle Channel Width

mm
4335
Minimum Right Angle Channel Width

mm
2335
Minimum Ground Clearance
h4
mm
120
Overhead Guard Height

mm
2090
Front Overhang
L3
mm
475


Performance
Max. Travelling Speed Full load









 km/h
20
Max. Lifting Speed Full load

 mm/s
 410
Max. Traction Full load

KW
18
Max. Climbing Ability

 %



Dimensions
Overall Length Without Fork
L1
mm
2725

Overall Width
W1
mm
1230
Max. Fork Lifting height (With Load Backrest)

 mm

4265

Mast Lowered Height
h2
 mm
 2095


Chassis
Tyre( Front/Rear )



 28x9-15-12PR
6.50-10-10PR

Wheel Base

mm
1700
Wheel Tread Front/Rear

mm
1000/970
Curb Weight Without Load

 Kg
 4850







Power
Battery Voltage/Capacity

 V/Ah
12/90
Engine Model


 XINCHAIG495BPG
Rated Power

kw/r.p.m
 39/2500
Rated Torgue

 Nm/r.p.m
168/1800
Bore*Stroke

mm
 95×105
Cylinder Amount


4
Displacement

L
2.98
Fuel Tank Volume

L
70
 Gears front/back


 2/2Manual shift, 1/1Power shift
Work pressure
MPa
17.5

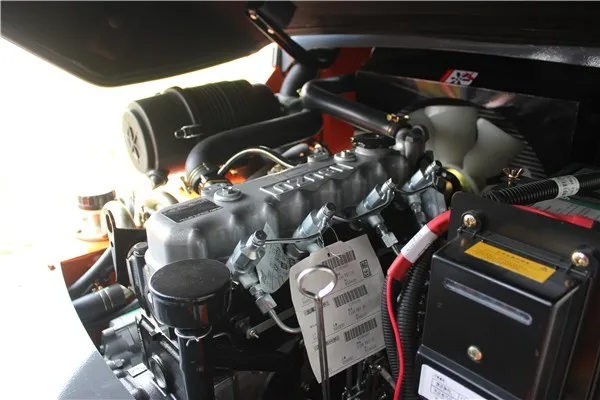

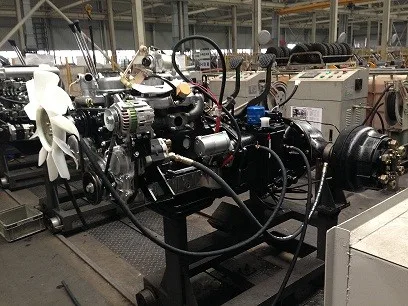

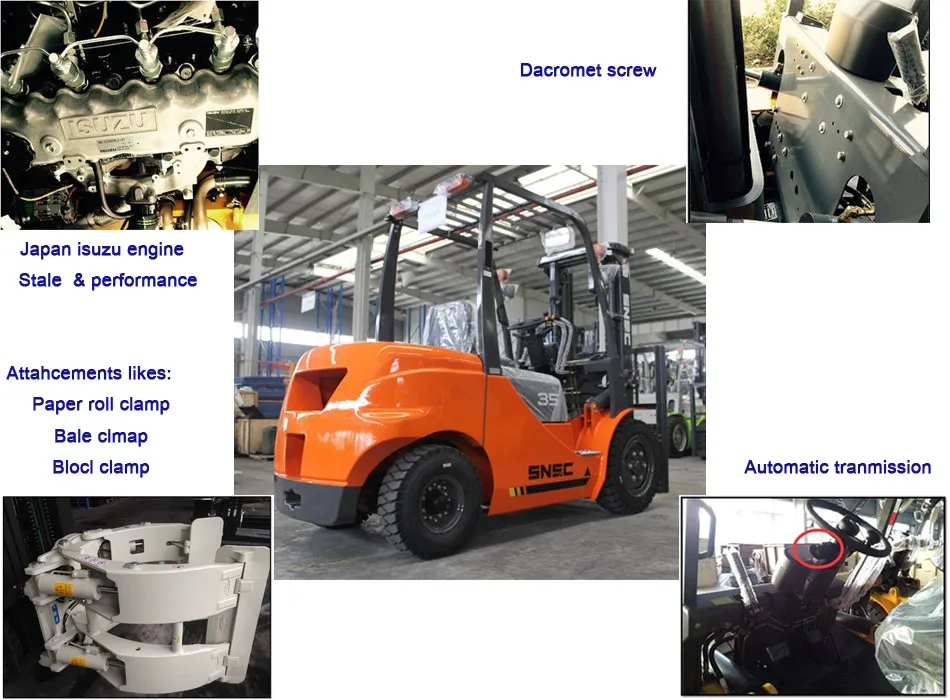

Japan Isuzu engine for 3.5tons forklift

3.5tons forklift adapt china xincai C495 engine, optional:ISUZU, Yanmar / Kubota / Perkins/Mitsubishi engine, stable quality and reliable performance, you can get spare parts more easier in your local place.

Automatic Transmission for3.5tons forklift

3.5tons forklift uses automatic transimission with finger, make your work very comfortable and efficient.


If you like hand transmission or mechanical transmission, price will be much more competitive.

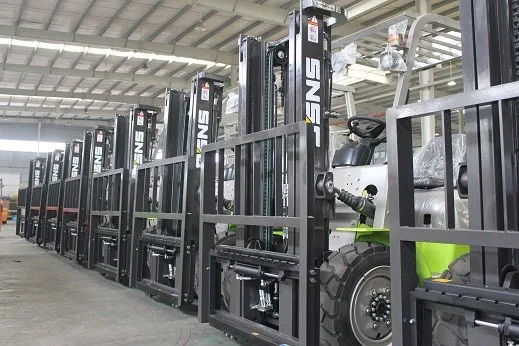

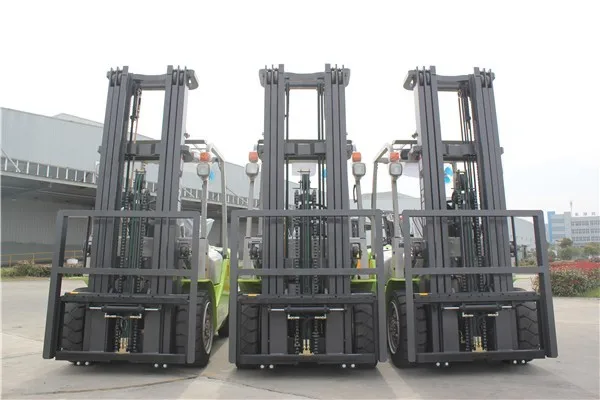

Different mast &lifting height for 3.5tons forklift

Our 3.5tons forklift used standard 3000mm lifting height duplex mast.
But we can also do different lifting height mast according customers' different working condition, eg: 3m duplex standard mast/ 4.5m duplex full free mast/ 6m triplex full free mast and others. Our mast lifting height capacity from 3m to 7m for customers choosing.

VIP soluction for 3.5tons forklift

Our forklift used standard 1070mm fork length.

we can offer all kinds attahement according customers' working condition,eg: solid tire/ sideshifter/ paper roll clamp/carton clamp/block clamp/blae clamp/positioner ect.

Certifications

 Our all kinds of fork lift for sale has passed all kinds of international certificates, eg:Russian Gost certificates or European CE(EC) certificates, especially, our CE certificates are made in Turkey. Quality is guaranteed and performance stable.

Our Products

We have all kinds of forklifts that can meet your needs.

I. Diesel forklift truck range from 1 to 16ton;(FD30/35/40/45/50/60/70/80/100/160)
II. Battery forklift truck range from 1.5 to 3.5ton;(FB15/20/25/30/35)
III.LPG and gasoline forklifts range from 2 to 3.5 ton(FL20/25/30/35);
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)
V.4 *4 all wheel drive off-road forklift range from 2.5 to 10ton.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

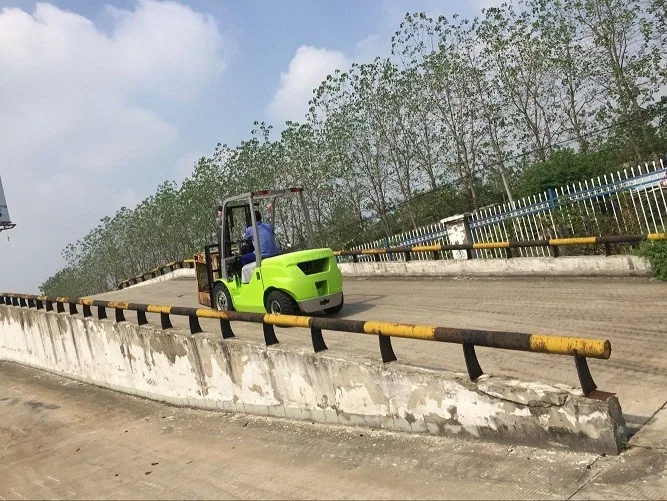

Quality control

Our SNSC products are all well-designed and strictly tested. Like angle/wheel hug/brake line/climbing/speed/loading/lifting/turn radis ect. We can make sure every forklift quatlity before delivery to our customer.So our fork lifts for sale products have won highly praised from oversea clients.

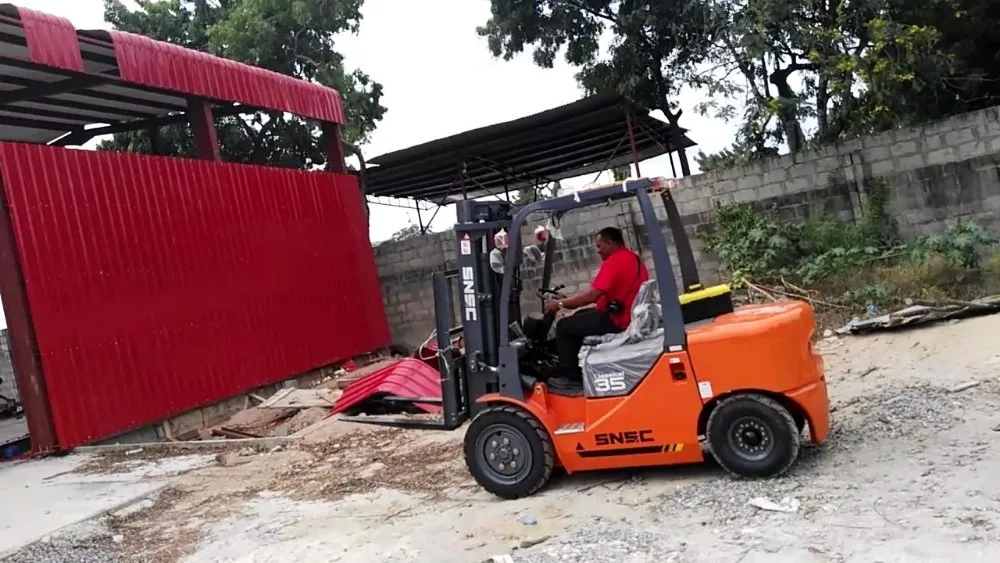

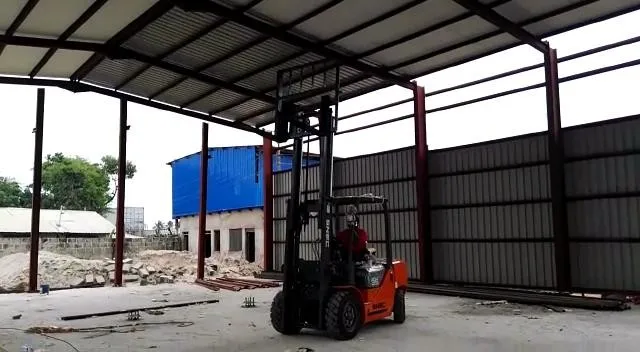

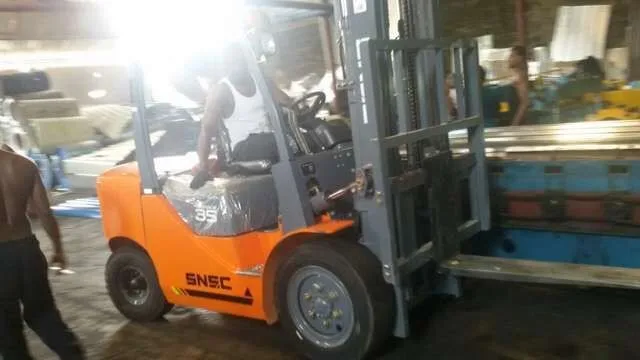

Forklift in oversae

2016.01,  El Salvador customer visited our forklift factory and ordered 8 unit FD35 forklift from us.
Customer thinks highly of our products and factory, and he signed an forklift agent agreement with us. We already established a long term forklift agent cooperation relationship. And we will expand the El Salvador market with our customer together. Welcome you to visit our video center to check our forklift videos:https://www.youtube.com/watch?v=NnHJ5geOyuU&feature=youtu.be

FAQ

1. Can you customize and design as the clients' requirement?
We will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.

2. How long is the warranty of your products?
All of products are with 15 months / 2000 working hours begins from the forklift arrival date of oversea subject to the first.

3. Can you produce the products labeled with the client's brand?
Yes, we do! With the authorization of the brand, we can OEM for our clients.

4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY.


5.How we get the forklift spare parts ?
We will be send you some wear spart part free for you when we dilivery the forklift. If needed urgent after sell, we will Courier in 24 hours for you.

6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.
